Digifast Knight 1TB M.2 NVMe RGB SSD - Gen3x4 PCIe, M.2 2280, Toshiba BiCS3 NAND - DGFARGB1TM2KT3
Gamer’s First Choice for Blazing Speeds
Digifast Knight M.2 NVMe RGB SSD
Power by Phison
Up to 3470MB/s Read
1.8 million hours (MTBF)
PCIe Gen 3x4
5 years limited warranty
First Choice for M.2 NVMe PCIe
Special bad block management capability allows for long-term reliability.
TRIM capability frees unused blocks of data to achieve greater efficiency.
Incredible Speed Performance
Powered by Phison E12 Controller for amazing and professional speed.
Speeds are over 5 times faster when compared to SATA SSD.
Features such as predict & fetch and over provision
keep the data flowing constantly and consistently.
Using the high-speed PCIe interface, Digifast M.2 achieves faster file reads and writes while greatly enhancing gaming performance: a fitting upgrade for all PCs and Laptops.

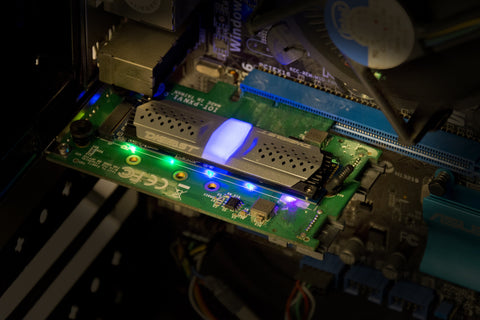

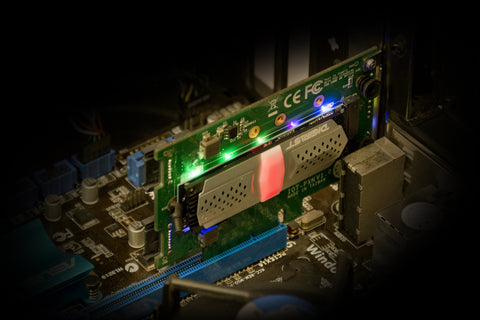

Supports RGB LED control chip and can control RGB LED effect mode by using RGB FUSION2.0.
Digifast Knight M.2 NVMe RGB SSD Series
256GB - 5 years limited or 150 TBW 512GB - 5 years limited or 300 TBW
1TB - 5 years limited or 600 TBW 2TB - 5 years limited or 1200 TBW
Type: Internal Solid State Drive (SSD)
IC Type: Phison PS5012-E12
Intended: Consumer/Client PCs
Interface: PCIe Gen 3x4 - NVMe 1.3
Capacity: (512GB 1TB 2TB)1
Sequential Read Speed: Up to 3740MB/s
Sequential Write Speed: Up to 3000MB/s
Toshiba BiCS3 TLC NAND flash
Power Consumption: Idle < 910 mW, L1.2 < 2 mW
Dimension: 80(L) x 20(W) x 3(H)
Weight: 0.63 Ounce
Internal Storage: Yes
Gaming SSD: Yes
RGB Color: 3 LED frontside 10 LED backside
SMART Bad Block Management
Advance Wear Leveling
Intelligent Predict and Fetch2
Reliability: 1.8 Million Hours MTBF4 , < 1 sector per 1016 bits read
RoHS WHQL PCI Express Base 3.1
Operating Voltage: Min = 3.14V Max = 3.47V
Rise time (Max/Min): 100 ms/0.1ms
Fall time (Max/Min): 5s/1s
Minimum Temperature: Storing -40°C (Humidity 0% RH) Operating 0°C (Humidity 0% RH)
Maximum temperature: Storing 85°C (Humidity 0%RH) Operating: 70°C (Humidity 0% RH)
Maximum Humidity: Storing: 40°C (90% RH) Operating 40°C (93% RH)
Temperature Cycling: Storing -40°C / 85°C Operating 0°C / 70°C
Operation Airflow: 800 LFM at 35C° ambient
Shock: Acceleration Force: 1500G
Vibration: Frequency/Displacement 20Hz~80Hz/1.52mm - Frequency/Acceleration 80Hz~2000Hz/20G
Drop: Height of Drop 80cm free fall - Number of Drop 6 face of each unit
Bending: Force ≥ 20N Action Hold 1min/5times
512GB - 5 years limited or 300 TBW
1TB - 5 years limited or 600 TBW
2TB - 5 years limited or 1200 TBW
**For more detail on the specs sheet please contact firstname.lastname@example.org
