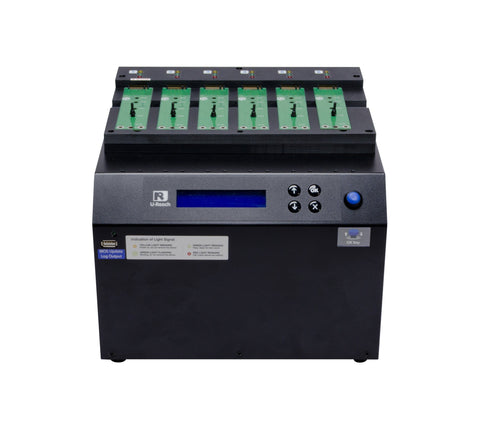

U-Reach M.2/U.2 & U.3 NVMe/SATA Duplicator and Sanitizer 1-5

U-Reach M.2/U.2 & U.3 NVMe/SATA Duplicator and Sanitizer 1-5
SKU: NV-BM600
Lead time: 2-4 Days
Please ensure that your browser cookies are enable for adding products to cart.

OVERVIEWS

Overview

Without exception, the fastest and most technologically advanced PCIe solution available. The NV-BM achieves up to 24 GB/min duplication speed which is future-proof for Gen4 NVMe Solid State drives (SSD). A feature-packed and high-performance in a space-saving footprint, the NV-BM is designed to meet the needs for any duplication requirement in PCIe M.2 & U.2 NVMe (PCIe) cloning.

The NV-BM is an advanced solution for PCIe M.2 cloning and erasure and is specially designed for high-volume round-the-clock operation. Its unique multi-tasking technology enables simultaneous copying from the internal image on the SSD drive or from the ports on the flattop open platform -- with a high transfer speed of up to 24 GB/min.

We guarantee the highest productivity without speed degradation even as the number of targets increases. The NV-BM duplicator provides four copy modes: quick smart copy, all partitions copy, percentage copy, and whole copy, which can meet different duplication task requirements. The quick copy mode copies data and skips blank areas. Formats such as NTFS, Linux (Ext2/Ext3/Ext4), FAT/FAT32, and Mac (HFS, HFSX, HFS+) are all supported with quick copy mode. This feature greatly increases efficiency when it's not required to "mirror clone" the entire drive.

In addition, the NV-BM duplicator is equipped with a variety of secure erase functions such as Quick Erase, Full Erase, Secure Erase (NIST SP 800-88r1), and DoD 5220 Erase to comply with government and enterprise data security standards.

Feature

  • Extreme speed, transfer speeds up to 24 GB/min (400MB/sec).
  • Up to 5 targets (6 with use from internal SSD)
  • Systems & files code mode supports Windows (FAT16/32/64, NTFS), Linux(ext2/ext3/ext4), Mac(HFS, HFS+, HFSX.)
  • Loads firmware on new M.2 devices. Supports firmware formats .std, .enc, .flu, .bin, .sig, .rel, and .bet.
  • Data Sanitization: Quick Erase, Full Erase, Secure Erase (NIST SP 800-88r1), and DoD Erase (DoD 5220.22)
  • Open-platform Design supports NVMe & SATA M.2 (Gen 3 & Gen 4 & Gen 5)/U.2 and U.3 (via adapter)/Mini PCIe (via adapter)
  • Log report management records all task details for better production management.
  • Cable-free connection for easier M.2 connections and disconnects.
  • Supports SATA I/II/III and 4Kn HDD
  • Supports all key types: M-Key and B+M Key
  • Supports SSD internal storage: Store and utilize several images for quick and convenient duplication.



TECH SPECS

General

Model NV-BM PCIe
Target 5

Specification
Maximum Transfer Speed 24GB/min. *Actual performance is dependent on HDD transfer speeds*
Capacity Supports the largest sized devices available on the market.
Operating Type Stand-alone, FPGA-based operation (Non PC-based)
Supported Languages English, Japanese
LCD Display Backlit Monochrome LCD Display
LEDs  3 LED Indicators per Port: Yellow (Power), Green (Pass), and Red (Fail)
Control Panel 4 Push Buttons(▲, ▼, OK, ESC)

Features
Copy Modes Quick Copy (Systems & Files Copy), All Partition Copy,
Whole Device Copy, Percentage Copy
Compare Function Bit-by-bit data comparison
Sanitization Modes Quick Erase, Full Erase, DoD Erase, Secure Erase, and more.

Special Features
Log Report Management Records all task details in the log report management system for enhanced production management.

Compatibilities
Compatible Devices NGFF (M.2): 2230, 2242, 2260, 2280, 22110, PCI-e SSD (full and low profiles)
Compatible Devices (with required adapter) SATA 2.5" HDD/SSD, U.2(SFF8639), U.3
Supported Formats Quick Copy: FAT16/32/64, Windows (NTFS), Linux (Ext2/Ext3/Ext4), and Mac (HFS, HFS+,HFSX)
Whole Device Copy: All Formats, including proprietary formats
Supported O/S All (Windows, Mac, Linux, and other stand-alone systems)

Hardware specification
Power Supply Universal Power: 115VAC or 230VAC, 50/60Hz
Working Temperature 5°C ~ 45°C (41°F ~ 113°F)
Storage Temperature -20°C ~85°C (-4°F ~ 185°F)
Working Humidity 20% ~ 80%
Storage Humidity 5% ~ 95%
Product Dimensions 16.6 in. x 15 in. x 13.8 in.
Weight (lbs) 22.1 lbs.
Certifications FCC, CE, REACH, MIL-STD-810H, DEF STAN 00-35, ADISA, ICES-003
Compliance MIL-STD-130N, NIST SP 800-88r1, ISO 27000

DISPLAY

USER MANUAL


Title

NV-BM Series PCIE Duplicator and Sanitizer
User Manual v A.09
Download Here




Title

NV-BM Series Quick Guide
Download Here

VIDEOS

How to Operate PC-Link Software?



How to Check the Disk Info?

How to Check the System Information and Version Number?

How to Replace M 2 and U 2 Interfaces?

How to Update and Upgrade the Firmware?

How to Perform the Copy Function?

How to extend the life of M 2 modular ports?
