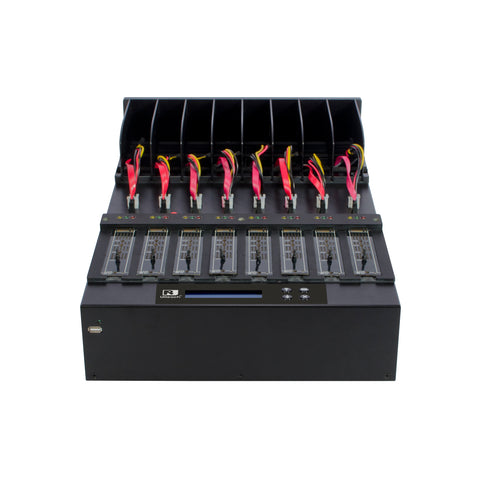

PW High-Speed Series M.2 and SATA Duplicator and Sanitizer 1-7

PW High-Speed Series M.2 and SATA Duplicator and Sanitizer 1-7 - U-Reach eStore
SKU: PW800H
Lead time: 2-4 Days
Please ensure that your browser cookies are enable for adding products to cart.

OVERVIEWS

Features
1) Transfer Speeds up to 18 GB per minute.
2) Systems & files copy mode supports Windows(FAT16/32/64, NTFS), Linux(ext2/ext3/ext4), and Mac(HFS, HFS+, HFSX.).
3) Supports NVMe & SATA M.2/SATA HDD & SSD with its open platform design.
4) Simplifies connection and disconnection through cable-free design.
5) Supports M key and B+M key for all M.2 PCIe and M.2 SATA devices.
6) Cable free connection for easier M.2 connection and disconnection.
7) Log report management records all task details for further enhanced management.

Overview

TECH SPECS

General

Model PW1200H
Target 7

Specification
Maximum Transfer Speed 18.0GB/min. *Actual performance is dependent on HDD transfer speeds*
Capacity Supports the largest sized devices available on the market.
Operating Type Stand-alone, FPGA-based operation (Non PC-based)
Supported Languages English, Japanese
LCD Display Backlit Monochrome LCD Display
LEDs  3 LED Indicators per Port: Yellow (Power), Green (Pass), and Red (Fail)
Control Panel 4 Push Buttons(▲, ▼, OK, ESC)

Features
Copy Modes Quick Copy (Systems & Files Copy), All Partition Copy,
Whole Device Copy, Percentage Copy
Compare Function Bit-by-bit data comparison
Sanitization Modes Quick Erase, Full Erase, DoD Erase, Secure Erase, and more.
Special Features

Log Report Management Records all task details in the log report management system for enhanced production management.
PC Monitoring Real-Time status monitoring through PC

Compatibilities
Compatible Devices NVMe M.2: 2230, 2242, 2260, 2280, 22110, SAS/SATA
Compatible Devices (with required adapter) CFAST, mSATA, SATA M.2
Supported Formats Quick Copy: FAT16/32/64, Windows (NTFS), Linux (Ext2/Ext3/Ext4), and Mac (HFS, HFS+,HFSX)
Whole Device Copy: All Formats, including proprietary formats
Supported O/S All (Windows, Mac, Linux, and other stand-alone systems)

Hardware specification
Power Supply Universal Power: 115VAC or 230VAC, 50/60Hz
Working Temperature 5°C ~ 45°C (41°F ~ 113°F)
Storage Temperature -20°C ~85°C (-4°F ~ 185°F)
Working Humidity 20% ~ 80%
Storage Humidity 5% ~ 95%
Product Dimensions 19 in. x 13.5 in. x 7 in.
Weight (lbs) 18.5 lbs.
Certifications FCC, CE, REACH
Compliance NIST SP 800-88r1, ISO 27000, MIL-STD-130N

USER MANUAL


Title

Auto-detect Dual-interfaces M.2/SATA SSD Duplicator

User Manual v A.04
Download Here
