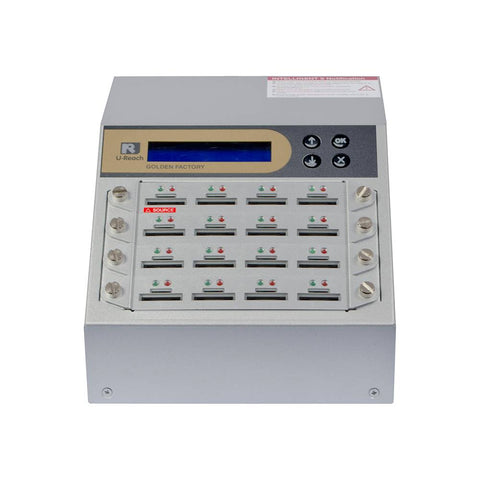

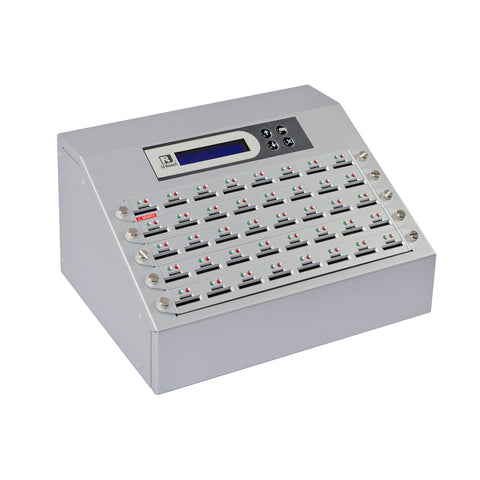

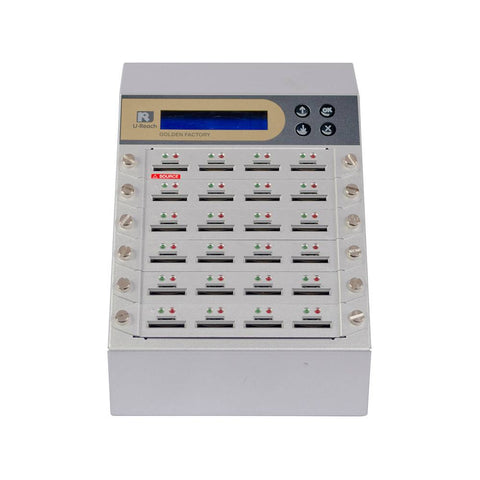

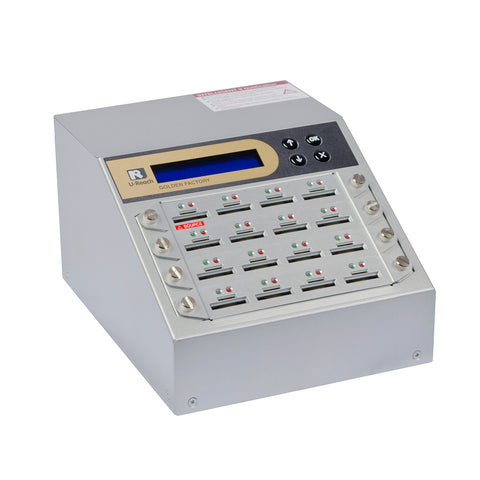

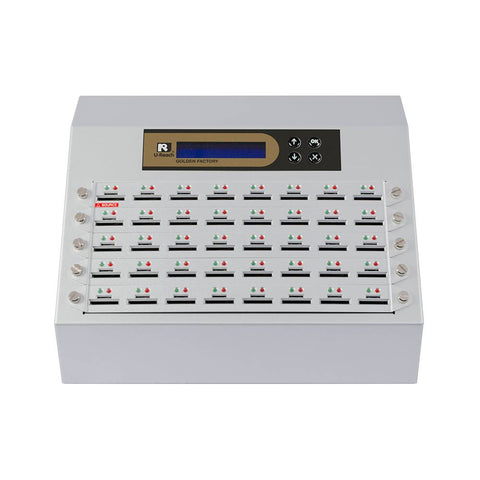

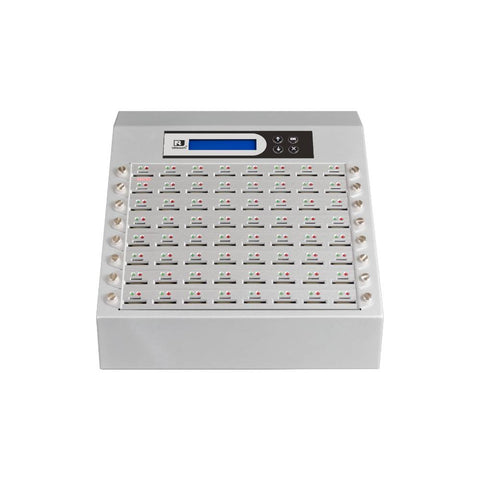

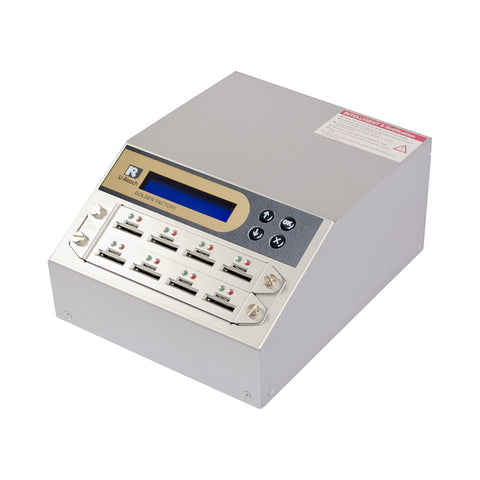

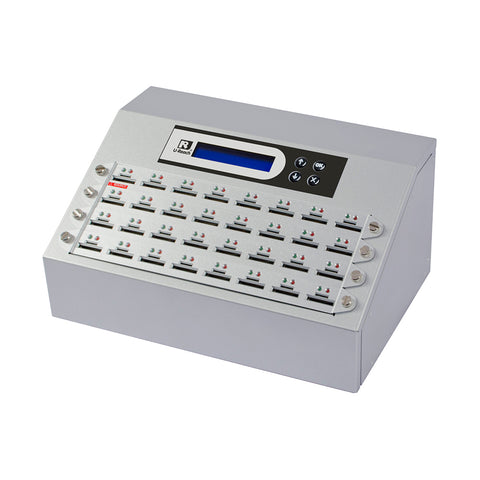

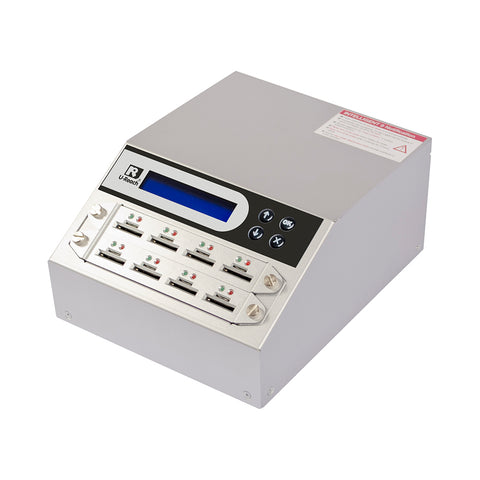

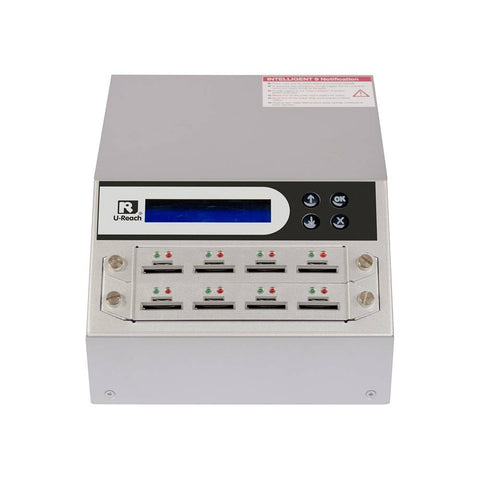

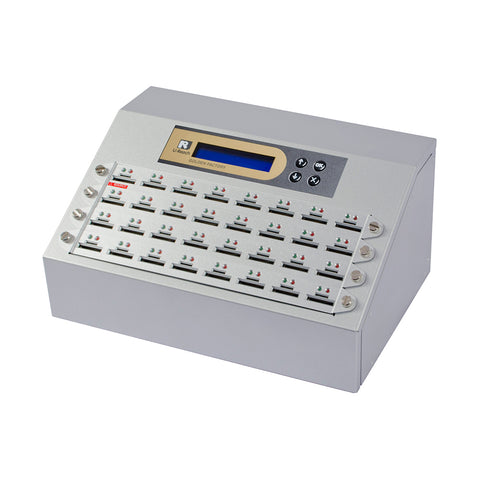

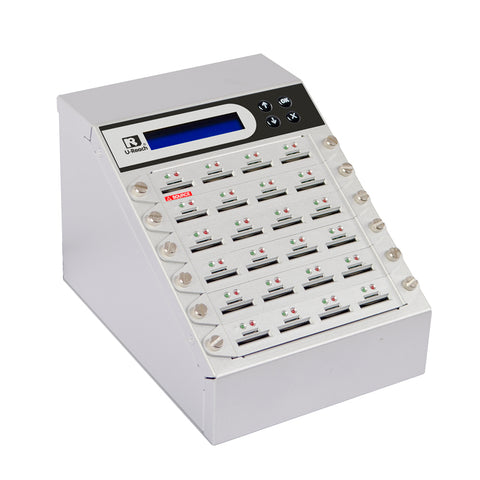

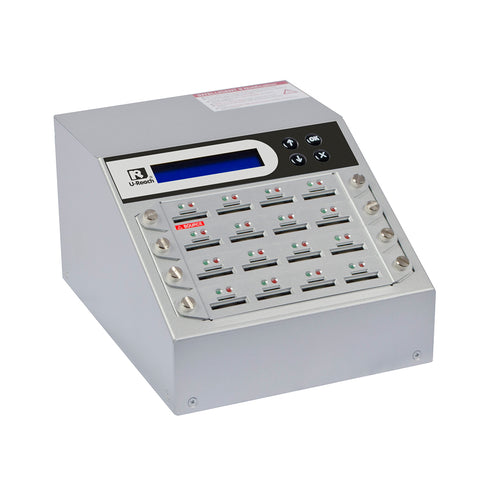

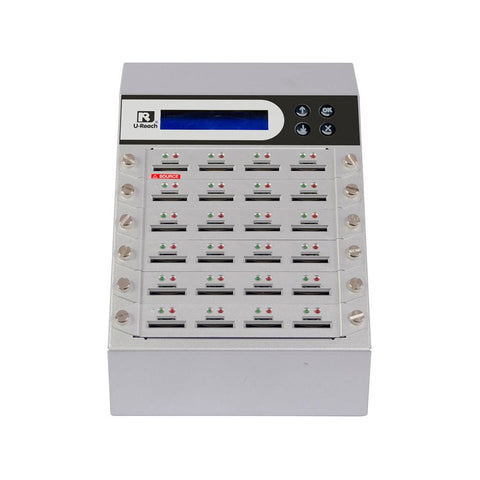

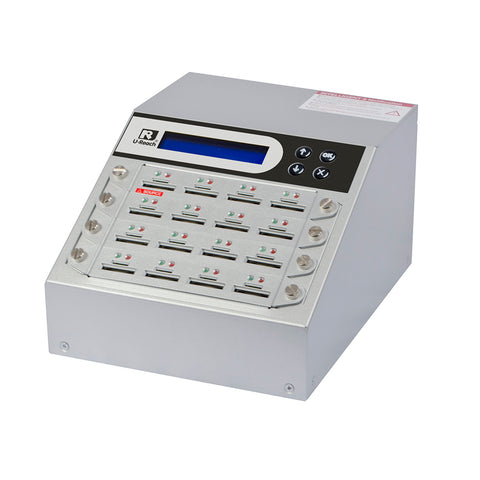

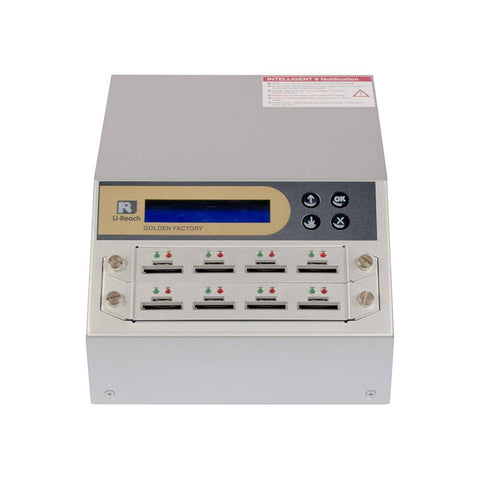

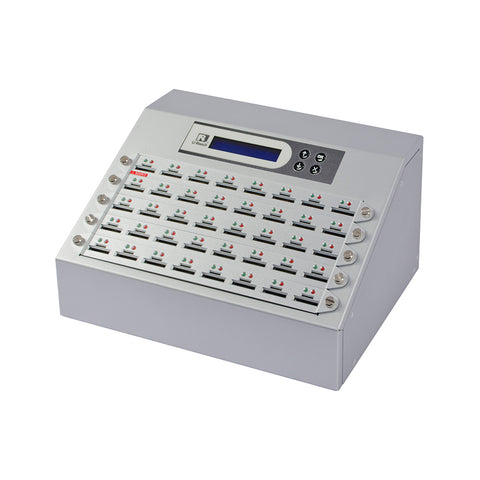

U-Reach Intelligent 9 SD/MicroSD Card Duplicator and Sanitizer

U-Reach Intelligent 9 SD/MicroSD Card Duplicator and Sanitizer - U-Reach eStore
SKU: SD908S
Lead time: 2-4 Days
Please ensure that your browser cookies are enable for adding products to cart.

OVERVIEWS

Features

  • High-speed copy supports up to 2GB/min (33MB/s) per port
  • Ergonomic design for easy operation.
  • Quick socket swap module.
  • Apply new advanced Multi-Core processor.
  • Complete standalone system, no computer required.
  • Supports all formats, data sizes, and memory card capacity bit-for-bit copy.
  • DoD Erase function complies with USA Department of Defense (DoD) data security standard DoD 5220-22
  • 4 kinds of professional quality diagnostic tools for Flash module.
    • Capacity Check: Verifies the initial sector and the final sector of the connected flash device within 2 seconds.
    • H3 Read Only Test: This function tests the readability of every sector on the connected USB device(s) and provides an average read speed. This test will not alter the data on the device(s).
    • H5 Write/Read Test: Overwrites machine-generated values to all sectors in the NAND flash, and verifies them to determine quality. Once the test passes, the devices are then formatted into FAT.
    • H6 Quality Test: Resembling the H5 test, it overwrites machine-generated values only to the empty sectors without disturbing pre-existing data, partitions, and formats.
  • Quick data copy, copies only data contained areas.(Support FAT16/32, Linux ext2/ext3, NTFS)
  • 2-second format, 3 models available for selection.
  • Supports Synchronous and Asynchronous modes for the Copy/Compare/ Erase/ Format functions.
  • Strict bit-by-bit hardware comparison further increases the reliability of duplication.
  • User-friendly interface with real-time information LCD.
  • Firmware upgrade available with well-experienced team support.

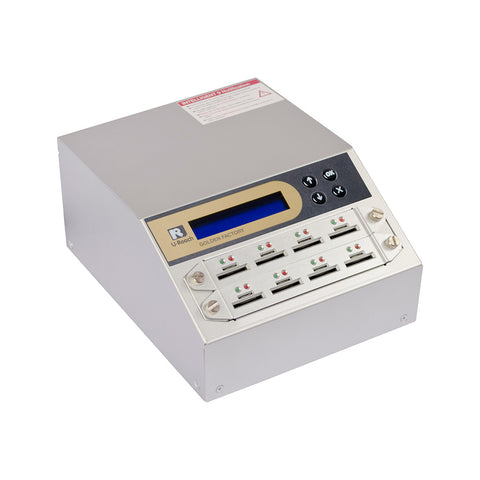

Additional Features In Gold Series Models:

  • Event-log Reporting Function: Event Log Report is an important asset Management tool to assist users in monitoring and recording the whole duplication control process. The Event Log report records all details of each duplication task. For example, working time, run function, model number, serial number of media and results, etc.
  • Burn-in Test Function: To find out the durability of your Flash devices, you can select the Burn-In function. You can set how long and how many loops and the duration of the Burn-In test. The range of the Burn-In time is between 30 minutes to 30 days.
  • Write protect: The Write Protection gives you the ability to make your SD/microSD cards permanently read-only once they have been duplicated. This write protection affords the assurance that the data cannot be tampered with once it is written to the SD/MicroSD.
  • Dual Source Compare Mode (DSCM): Dual-source comparison mode can eliminate the chance of a duplication error caused by a worn or a source that is not 100% accurate. Use the first port as a copying source and use the second port as a backup/compare source. It will guarantee the highest reliability and 100% accuracy of the duplication process if your application demands it.

TECH SPECS



General

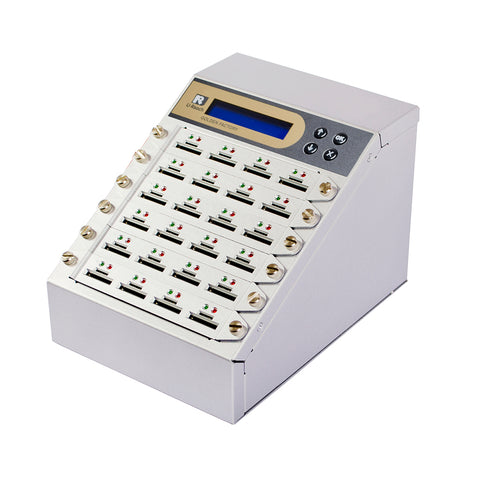

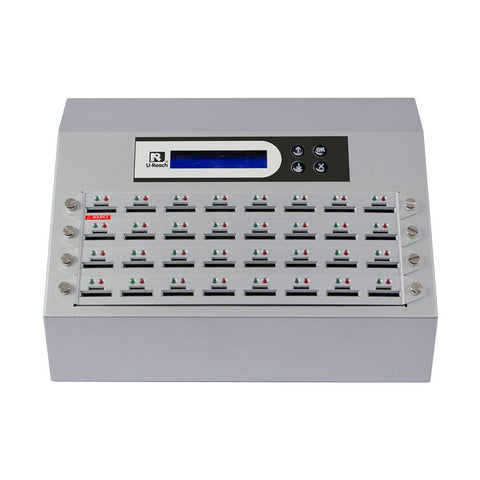

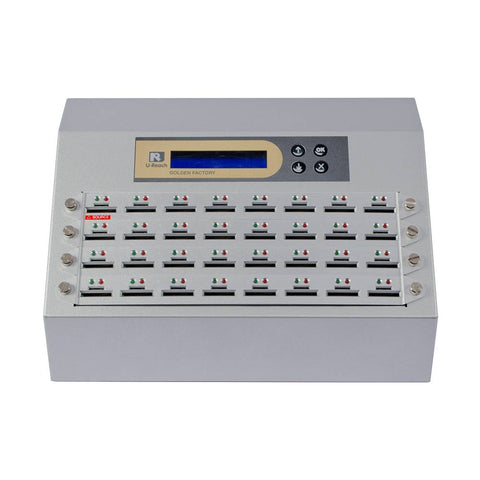

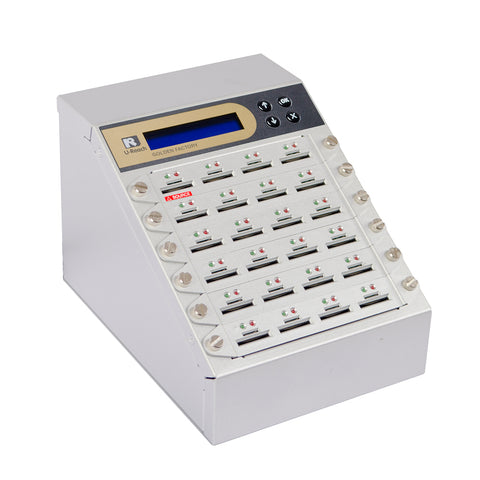

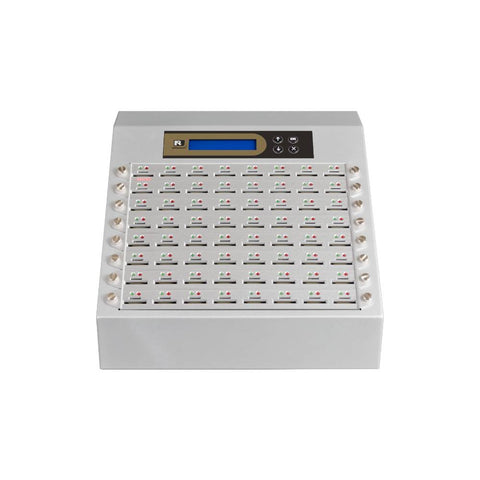

Source Targets 1:7, 1:15, 1:23, 1:31, 1:39, 1:63

Specification
Maximum Transfer Speed 2GB/min. *Actual performance is dependent on device transfer speeds*
Capacity Supports the largest sized devices available on the market.
Operating Type Stand-alone, FPGA-based operation (Non PC-based)
Supported Languages English, Japanese
LCD Display Backlit Monochrome LCD Display
LEDs  3 LED Indicators per Port: Yellow (Power), Green (Pass), and Red (Fail)
Control Panel 4 Push Buttons(▲, ▼, OK, ESC)

Features
Copy Modes Quick Copy (System & Files): Supports Windows, Mac, and Linux.
Whole Media: Copies bit-by-bit regardless of format and data type.
Compare Function Bit-by-bit data comparison
Sanitization Modes Quick Erase, Full Erase, DoD Erase

Special Features
Log Report Management  Records all task details in the log report management system for enhanced production management. (Only for gold series)
PC Monitoring Real-Time status monitoring through PC

Compatibilities
Compatible Devices All SD and MicroSD Devices.
Supported Formats Quick Copy Function: FAT16/32/64, Windows (NTFS), Linux
(Ext2/Ext3/Ext4), and Mac (HFS, HFS+, HFSX).
Whole Device Copy Function: All Formats, including proprietary formats.
GPT, MBR, and Advanced Formats
Supported O/S All (Windows, Mac, Linux, and other stand-alone systems)

Hardware specification
Power Supply Power Adapter Input: 100-240VAC / 47-63Hz / 1.4A Max.
Power Adapter Output: 12VDC / 5A for 8-48 Ports
Power Adapter Output: 12VDC / 9A for 64-120 Ports
Working Temperature 5°C ~ 45°C (41°F ~ 113°F)
Storage Temperature -20°C ~85°C (-4°F ~ 185°F)
Working Humidity 20% ~ 80%
Storage Humidity 5% ~ 95%
Certifications FCC, CE, REACH, MIL-STD-810H, DEF STAN 00-35, ICES-003
Compliance NIST SP 800-88r1, ISO 27000

DISPLAY

USER MANUAL

Title

Intelligent 9 SD/microSD Duplicator & Sanitizer

User Manual v A.02
Download Here
