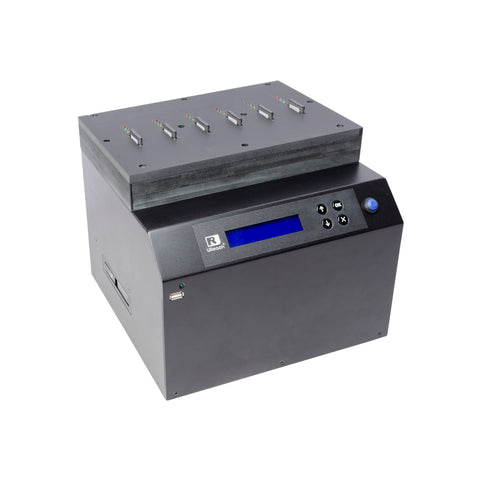

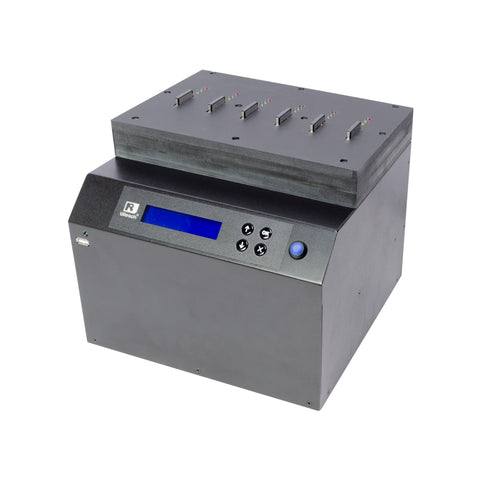

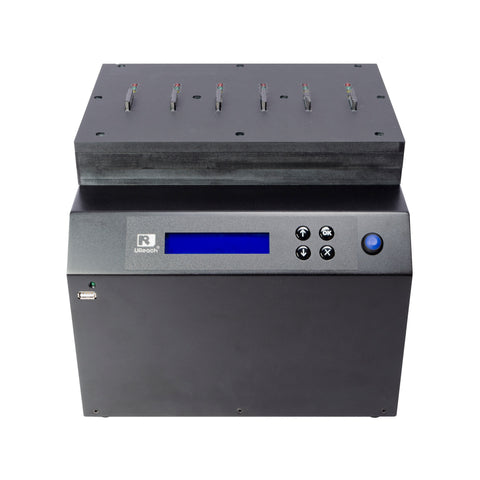

U-Reach NV-BM CFX Series - CFexpress Duplicator and Sanitizer 1-5
OVERVIEWS
Feature
- Transfer Speeds up to 24 GB per minute (400 MB per second).
- Up to 5 targets (6 with use from internal SSD)
- Supports systems & files copy for Windows (FAT16/32/64, NTFS), Linux (ext2/ext3/ext4), and Mac (HFS, HFS+, HFSX).
- Supports firmware formats .std, .enc, .flu, .bin, .sig, .rel, and .bet.
- Supports CFexpress type B device with its open platform design.
- Simplifies connection and disconnection through cable-free design.
TECH SPECS
General
| Model | NV-BM CFX |
| Target | 5 |
Specification
| Maximum Transfer Speed | 24.0GB/min. *Actual performance is dependent on device transfer speeds* |
| Capacity | Supports the largest sized devices available on the market. |
| Operating Type | Stand-alone, FPGA-based operation (Non PC-based) |
| Supported Languages | English, Japanese |
| LCD Display | Backlit Monochrome LCD Display |
| LEDs | 3 LED Indicators per Port: Yellow (Power), Green (Pass), and Red (Fail) |
| Control Panel | 4 Push Buttons(▲, ▼, OK, ESC) |
Features
| Copy Modes | Quick Copy (Systems & Files Copy), All Partition Copy, Whole Device Copy, Percentage Copy |
| Compare Function | Bit-by-bit data comparison |
| Sanitization Modes | Quick Erase, Full Erase, DoD Erase, Secure Erase, and more. |
Special Features
| Log Report Management | Records all task details in the log report management system for enhanced production management. |
Compatibilities
| Compatible Devices | CFexpress type B Card |
| Supported Formats | Quick Copy: FAT16/32/64, Windows (NTFS), Linux (Ext2/Ext3/Ext4), and Mac (HFS, HFS+,HFSX) Whole Device Copy: All Formats, including proprietary formats |
| Supported O/S | All (Windows, Mac, Linux, and other stand-alone systems) |
Hardware specification
| Power Supply | Universal Power: 115VAC or 230VAC, 50/60Hz |
| Working Temperature | 5°C ~ 45°C (41°F ~ 113°F) |
| Storage Temperature | -20°C ~85°C (-4°F ~ 185°F) |
| Working Humidity | 20% ~ 80% |
| Storage Humidity | 5% ~ 95% |
| Product Dimensions | 16.6 in. x 15 in. x 13.8 in. |
| Weight (lbs) | 22.1 lbs. |
| Certifications | FCC, CE, REACH, MIL-STD-810H, DEF STAN 00-35, ADISA, ICES-003 |
| Compliance | MIL-STD-130N, NIST SP 800-88r1, ISO 27000 |
DISPLAY
USER MANUAL
|
Title |
NV-BM600CFX Duplicator and Sanitizer |
| Download | Here |
