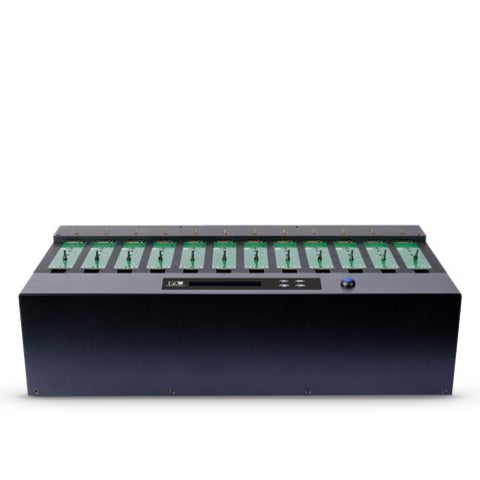

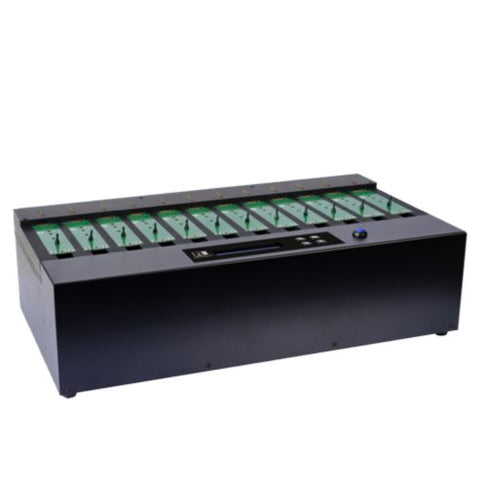

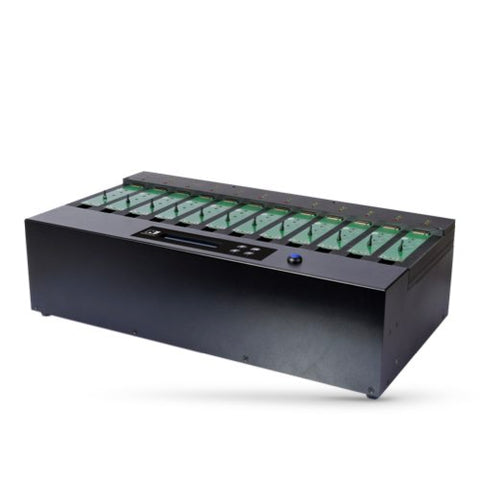

U-Reach Slim Version M.2 NVMe Duplicator and Sanitizer 1-11


SKU: NV-BMS12
Lead time: 2-4 Days
Please ensure that your browser cookies are enable for adding products to cart.

OVERVIEWS

Features
1) Stand-alone, FPGA-based operation (Non-PC based system design).
2) Embedded controller is designed to support the highest capacity available on the market.
3) Supports Native NVMe (Gen 3 & Gen 4 & Gen 5) and M.2 SATA protocols.
4) Peak transfer speeds up to 10.2GB/min. (170MB/sec.)
5) Up to 11 targets.
6) Dedicated bandwidth enables high-volume replications without speed degradation.
7) Constant improvement supports the latest market-available devices.
8) Modular ports are replaced quickly, which effectively reduce downtime and is cost-effective for long-term ownership.

Overview

TECH SPECS

General

Model NV-BMS12
Target 11

Specification
Maximum Transfer Speed 10.2 GB/min. *Actual performance is dependent on HDD transfer speeds*
Capacity Supports the largest sized devices available on the market.
Operating Type Stand-alone, FPGA-based operation (Non PC-based)
Supported Languages English, Japanese
LCD Display Backlit Monochrome LCD Display
LEDs  3 LED Indicators per Port: Yellow (Power), Green (Pass), and Red (Fail)
Control Panel 4 Push Buttons(▲, ▼, OK, ESC)

Features
Copy Modes Quick Copy (Data & System): Supports Windows, Mac, and Linux.
All Partitions: Users can skip HPA or unknown partitions.
Whole Device: Copies bit-by-bit from the master device.
Percentage Copy: Users can set percentages of capacity to be copied.
Compare Function Bit-by-bit data comparison
Sanitization Modes Quick Erase, Full Erase (NIST SP 800-88r1), and Secure Erase (NIST SP 800-88r1)

Compatibilities
Compatible Devices NGFF (M.2): 2230, 2242, 2260, 2280, 3030, 3042, 3060, 22110, and 3080.
Supports B+M Key or M Key Only
Supported Formats Quick Copy Function: FAT16/32/64, Windows (NTFS), Linux(Ext2/Ext3/Ext4), and Mac (HFS, HFS+, HFSX).
Whole Device Copy Function: All Formats, including proprietary formats.
GPT, MBR, and Advanced Formats.
Supported O/S All (Windows, Mac, Linux, and other stand-alone systems)

Hardware specification
Power Supply Universal Power: 115VAC or 230VAC, 50/60Hz
Working Temperature 5°C ~ 45°C (41°F ~ 113°F)
Storage Temperature -20°C ~85°C (-4°F ~ 185°F)
Working Humidity 20% ~ 80%
Storage Humidity 5% ~ 95%
Dimensions 22.5 in. x 18 in. x 15.5 in
Weight 27.6 lbs
Certifications FCC, CE, REACH, MIL-STD-810G, ICES-003
Compliance MIL-STD-130N, NIST SP 800-88r1, ISO 27000

DISPLAY

USER MANUAL


Title

NV-BM Series – Slim Version NVMe Duplicator and Sanitizer
User Manual v A.03

Download Here

VIDEO

How to Check the System Information and Version Number?

How to Perform a Cross Signal Copy?

How to Perform the Comparison Function after Copying?

How to Performs the Copy Function?

How to Replace the M 2 Socket?

How to View the Device Information?

How to extend the life of M 2 modular ports?
