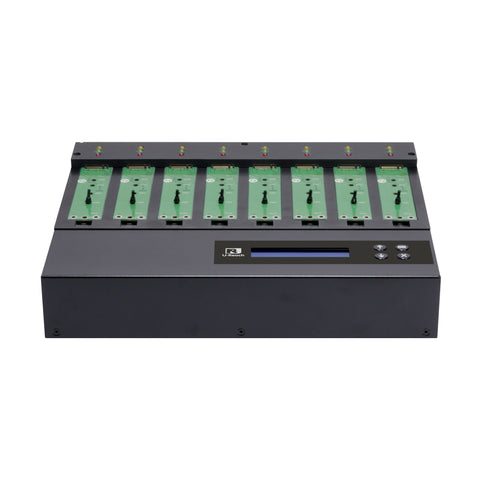

U-Reach Slim Version M.2 NVMe Duplicator and Sanitizer 1-7

OVERVIEWS

Features
1) Stand-alone, FPGA-based operation (Non-PC based system design).
2) Embedded controller is designed to support the highest capacity available on the market.
3) Supports Native NVMe (Gen 3 & Gen 4 & Gen 5) and M.2 SATA protocols.
4) Peak transfer speeds up to 10.2GB/min. (170MB/sec.)
5) Up to 7 targets.
6) Dedicated bandwidth enables high-volume replications without speed degradation.
7) Constant improvement supports the latest market-available devices.
8) Modular ports are replaced quickly, which effectively reduce downtime and is cost-effective for long-term ownership.

Overview

TECH SPECS

General

Model	NV-BMS12
Target	11

Specification

Maximum Transfer Speed	10.2 GB/min. Actual performance is dependent on HDD transfer speeds
Capacity	Supports the largest sized devices available on the market.
Operating Type	Stand-alone, FPGA-based operation (Non PC-based)
Supported Languages	English, Japanese
LCD Display	Backlit Monochrome LCD Display
LEDs	3 LED Indicators per Port: Yellow (Power), Green (Pass), and Red (Fail)
Control Panel	4 Push Buttons(▲, ▼, OK, ESC)

Features

Copy Modes	Quick Copy (Data & System): Supports Windows, Mac, and Linux. All Partitions: Users can skip HPA or unknown partitions. Whole Device: Copies bit-by-bit from the master device. Percentage Copy: Users can set percentages of capacity to be copied.
Compare Function	Bit-by-bit data comparison
Sanitization Modes	Quick Erase, Full Erase (NIST SP 800-88r1), and Secure Erase (NIST SP 800-88r1)

Compatibilities

Compatible Devices	NGFF (M.2): 2230, 2242, 2260, 2280, 3030, 3042, 3060, 22110, and 3080. Supports B+M Key or M Key Only
Supported Formats	Quick Copy Function: FAT16/32/64, Windows (NTFS), Linux(Ext2/Ext3/Ext4), and Mac (HFS, HFS+, HFSX). Whole Device Copy Function: All Formats, including proprietary formats. GPT, MBR, and Advanced Formats.
Supported O/S	All (Windows, Mac, Linux, and other stand-alone systems)

Hardware specification

Power Supply	Universal Power: 115VAC or 230VAC, 50/60Hz
Working Temperature	5°C ~ 45°C (41°F ~ 113°F)
Storage Temperature	-20°C ~85°C (-4°F ~ 185°F)
Working Humidity	20% ~ 80%
Storage Humidity	5% ~ 95%
Dimensions	18 in. x 16 in. x 12 in.
Weight	16.2 lbs
Certifications	FCC, CE, REACH, MIL-STD-810G, ICES-003
Compliance	MIL-STD-130N, NIST SP 800-88r1, ISO 27000

DISPLAY

USER MANUAL

Title	NV-BM Series – Slim Version NVMe Duplicator and Sanitizer User Manual v A.03
Download	Here

VIDEO

How to Check the System Information and Version Number?

How to Perform a Cross Signal Copy?

How to Perform the Comparison Function after Copying?

How to Performs the Copy Function?

How to Replace the M 2 Socket?

How to View the Device Information?

How to extend the life of M 2 modular ports?
